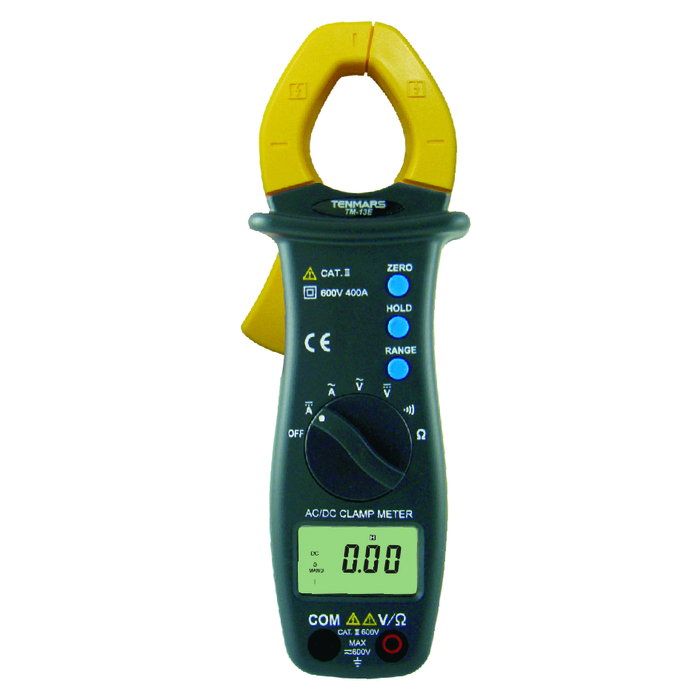

TM-13E_AC/DC Clamp Meter

Product Price $ 200
count:

TM-13E_AC/DC Clamp Meter-Require

TM-13E_AC/DC Clamp Meter

TM-13E_AC/DC Clamp Meter

CAT III 600V

3-3/4 digit LCD with Analog Bargraph.

Display Counts: 4000.

Low battery indication.

Auto Ranging.

Data Hold and Range Hold Auto Zero.

Test Ranges: ACV, ACA, DCV, DCA, Resistance, Continuity.

Maximum conductor size 30mm.

Continuity test below 40 ohms, buzzer will sound.

Auto Power off.

Specification

Max measuring current

400A

Display counts

4000

Max conductor size

30mm

AC Current

10mA~400A ±(2.0%+10)

DC Current

10mA~400A ±(2.0%+10)

AC Voltage

0.1mV~600V ±(1.0%+3)

DC Voltage

0.1mV~600V ±(0.8%+2)

Resistance

0~40MΩ ±(1%+3)
