TM-12E

Product Price $ 200
count:

TM-12E-Require

TM-12E

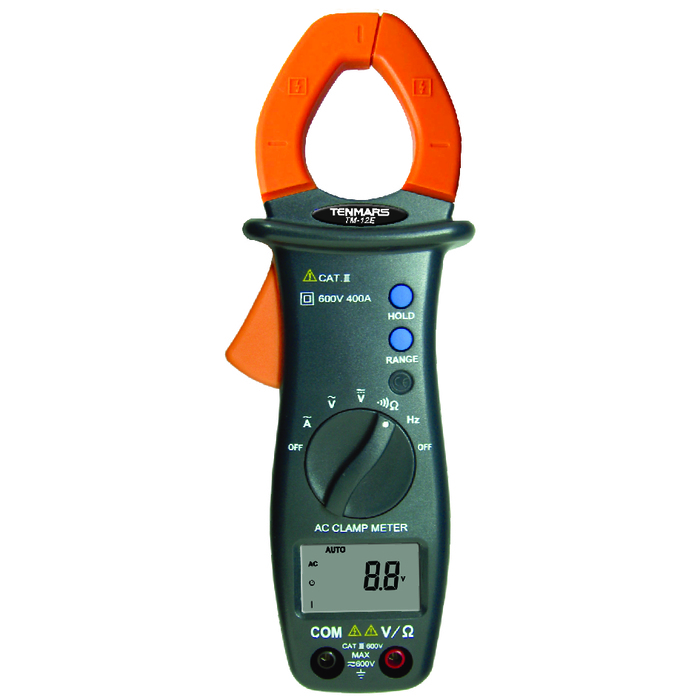

TM-12E  AC Clamp Phase





Application

EMC:This apparatus was designed in accordance with EMC standards in force and its compatibility has been tested in accordance EN61326 (1997) + A1 (1998) + A2 (2001).





Features

  • Jaws opening up to 30mm.
  • The maximum conductor size is Ø30mm.
  • Safety sockets designed.
  • Data Hold.
  • Impedance in circuit is below 40Ω. The buzzer will sound.
  • Polarity Indication: Automatic polarity, “-“ display for negative input.
  • Overload Indication: LCD will show a “OL” in the left highest position.
  • Low Battery Indication : Replace battery as LCD display “BAT”.






Specifications

  • Display:3¾LCD with maximum reading 3999 units plus decimal point signs plus backlight
  • Sample rate:2 times/sec.
  • Jaws opening:30mm
  • Max conductor size:30mm
  • Dimension: 195mm(L)x64mm(W)x30mm(H).
  • Weight:about 240g. (Including battery)
Electrical Specifications(23℃±5℃, with RH< 75％RH )
ACA (Auto/Manual)
Range
Resolution
Accuracy
50Hz~60 Hz
Overload
Protection
40A
0.01A
±(2.0%+10)
600A rms
(60 second)
400A
0.1A

ACV (Auto/Manual)
Range
Resolution
Accuracy
50Hz~500 Hz
Input
Impedance
Overload Protection
40V
0.1V
±(1.5%+5)
10MΩ
660V rms
400V
1V

DCV (Auto/Manual)
Range
Resolution
Accuracy
Input Impedance
Overload
Protection
400V
0.1V
±(1.0%+3)
10MΩ
660V rms
600V
1V


Frequency (Auto-Ranging)
Range
Resolution
Accuracy
Max.
Sensitivity
Overload Protection
4KHz
1Hz
±(0.8%+3)
3V rms
DC/AC
600V rms
40KHz
10Hz
400KHz
100Hz

Continuity
Range
Buzzer
Max. Open
Voltage
Overload
Protection
below 40
About-1.5VDC
600V rms

Resistance
Range
Buzzer
Accuracy
Max. Open Voltage
Overload Protection
Ω
(400Ω)
0.1Ω
±(1%+5)
About-1.5VDC
600V rms





Accessories



Download

File type
file name
Format
Download
TM-12E&13E&13R
EN. User’s Manual
PDF
