YF-8050

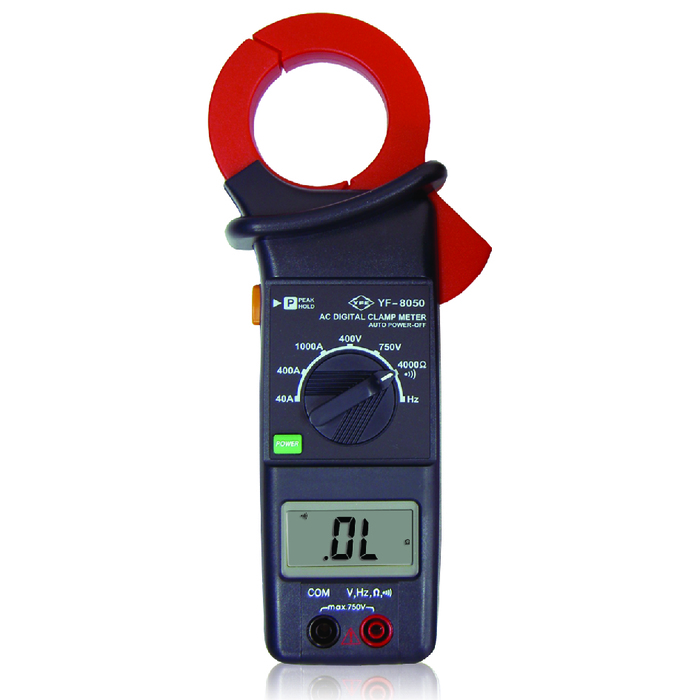

YF-8050   AC Clamp Meter





Application

  • Display: 3 3/4dgt. LCD with max. reading 3999, units, decimal point and signs.
  • Overload: display highest "OL" at left side.
  • Sampling time: 2.5 times/sec.
  • Peak Hold: for measuring peak value of AC current and voltage.
  • Operating temperature & humidity: 0℃~40℃, below 80%RH.




Features

  • Max. opening size up to 53mm.
  • Auto-indication of measuring units and functions.
  • Peak Hold functions.
  • Current measurement protection up to 1200A.
  • Rugged, tough and reliable quality.


Specifications

  • Dimensions:250x70x35mm(length x width x height).
  • Weight: Approximately 420 grams.(incl. Battery)
Electrical Specifications
ACV
Range
Resolution
Accuracy
Overload Protection
400V
0.1V
±(1%+4)
DC 1000V
AC 750Vrms
750V
1V

ACA
Range
Resolution
Accuracy
50Hz~60Hz
Overload Protection
200V
0.01A
±(1.5%+3)
1200A(60sec)
750V
0.1A
±(1.5%+4)
1000A
1A
±(1.5%+4)

Resistance()
Range Resistance Accuracy Max.Open Voltage Overload Protection
4000Ω 1Ω  ±(1.0%+2) 3.1V~3.5V  600V rms

Auto range frequency
Range
Resolution
Accuracy
Max. Sensitivity
Overload  Protection
4KHz
1Hz
±(0.8%+3)
3Vrms
600Vrms
40KHz
10Hz
400KHz
100Hz
4000KHz
1KHz
±(1.2%+3)
5Vrms

Inductive Clamp Jaw measuring frequency of ranges:10Hz~10KHz
Measurement Range
Sensitivity
10Hz~200Hz
 2A
201Hz~400Hz
 3A
401Hz~600Hz
 4A
601Hz~800Hz
 5A
801Hz~1000Hz
 6A
1.001KHz~1.9KHz
 10A
1.91KHz~4KHz
 20A
4.01KHz~10KHz
 50A


Accessories
