TM-196

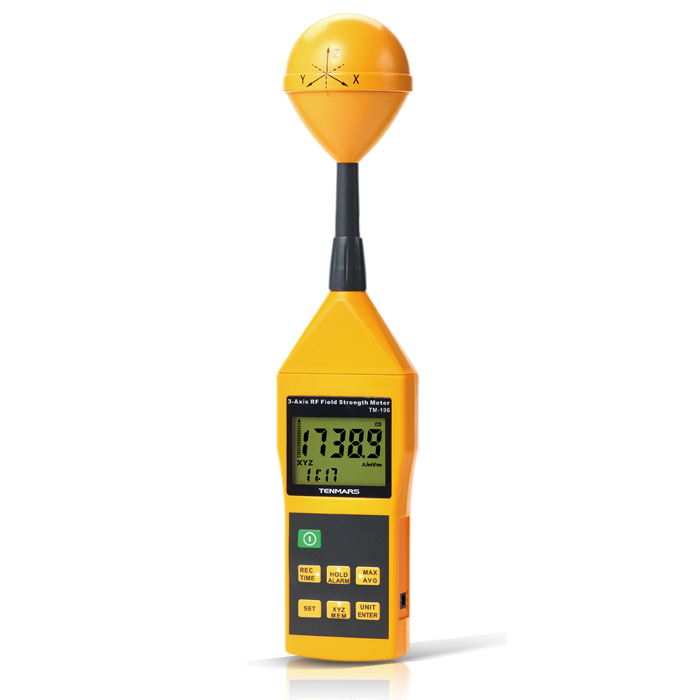

TM-196 3 - Axis RF Field Strength Meter


This meter is designed for measuring and monitoring Radio–Frequency electromagnetic field strength.
The meter is calibrated precisely over the frequency range of 10MHz~8GHZ.


Application

TM-196 is designed for measuring and monitoring Radio Frequency(RF) electromagnetic field strength
and capable of measuring the frequency range of 10Mz~8GHz. It's ideal for the applications of:
  • RF power measurement for transmitters.
  • High frequency(RF)electromagnetic wave field strength measurement.
  • Mobile phone base station antenna radiation power density measurement.
  • Spy camera, wireless bug finder.
  • Wireless communication (CW, TDMA, GSM, DECT) applications.
  • Wireless LAN (Wi-Fi) detection, installation.
  • Cellular /Cordless phone radiation safety level.
  • Microwave oven leakage detection.
  • Personal living environment EMF safety.






Features

  • Measurement range: 38mV to 11V/m
  • Frequency range: 10MHz~8GHZ.
  • Sensor: Triple Axis (X, Y, Z).
  • Manual data memory (Max & AVG) records.
  • Calibration factor, Alarm and Clock settings.



Specifications

 Measurement range
 50mV/m to 11V/m
 Display
 4½ digits maximum reading 19999
 Frequency range
 10MHz~8GHz
 (accuracy :±1dB at 2.45GHz)
 Measurement units
 mV/m, V/m, µA/m, mA/m,
 µW/m², mW/m²,µW/cm²
 Display resolution
 0.1mV/m, 0.01V/m,
 0.1µA/m, 0.001mA/m,
 0.001µW/m², 0.01mW/m²,
 0.001µW/cm²
 Manual data memory
 200 data sets
 Alarm function
 Adjustable threshold with ON/OFF
 Memory recall
 Adjustable
 Calibration factor CAL
 The CAL setting range is from 0.10~5
 Sampling time
 3 times per second
 Operating temperature
 and humidity
 0°C~50°C (32°F~122°F),
 25% ~75% RH
 Power supply
 9V battery
 (NEDA 1604 IEC 6F22 JIS 006P)
 Battery life
 Approx. 3hours
 Dimension
 370x80x80mm (LxWxH)
 Weight
 Approx.400g (including battery)


Accessories

  • User’s manual
  • 9V battery
  • Carrying case.

Download

File type
file name
Format
Download
TM-196
EN. User’s Manual
PDF
