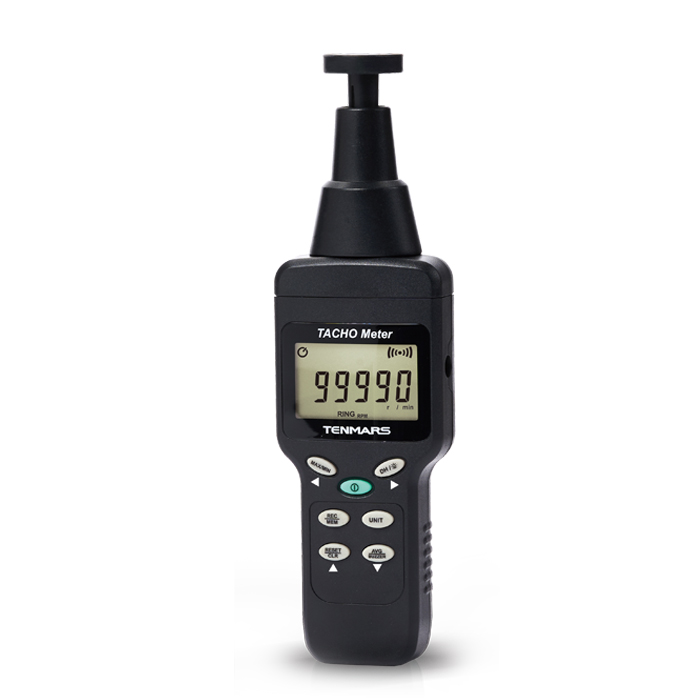

TM-4100 _ TM-4100D Tacho Meter

Product Price $ 200
count:

TM-4100 _ TM-4100D Tacho Meter-Require

TM-4100 _ TM-4100D Tacho Meter

TM-4100 _ TM-4100D Tacho Meter

- Large LCD 6 digits with backlit.

- Measuring by the output of red visible-spectrum light.

- Measurement distance: 40~500mm.

- Memory of 200 data.

- USB datalogger up to 30,000 data (TM-4100D).

Application

TM-4100 Tacho Meter can be used for various types of equipment such as conveyors, cooling equipment, dryers, elevators, windmills, rotary feeders and grinders. It is available for contact (with 4100K tool kit) and non-contact applications. The non-contact can measure from 40mm up to 500mm.

Specification

Models

TM-4100

TM-4100D (USB datalogger)

Display

6 digits backlit LCD

Detection distance

40mm to 500mm (1.58 to 19.7)

Measuring indicator

The LCD display RING with a buzzer sound (or off)

Sampling period

62.5ms to 2s

Operating temp/humidity

0~40°C;25% to 75% RH

Storage temp/humidity

-10~60°C;0% to 80% RH

Memory capacity

200 data sets

20,000 data sets

Power supply

9V battery x1

External power

AC 100~240V to DC 9V/0.5A

Battery life

About 30 hours (buzzer off)

Dimension

Approx. 186x76x36mm (LxWxH)

Weight

Approx. 200g

Accessories

Battery x1, carrying case x1, reflective tape x1 sheet, MINI USB 4P (MALE) to USB cable x1 (TM-4100D)



Accuracy

AVG ON

AVG OFF

Up to 9,999 counts

±1dgt

±10dgt

10,000 counts

±2dgt

±20dgt

20,000 counts or more

(r/min mode only)

±20dgt

±100dgt

Period measurement only

±0.5% rdg is added to above-mentioned accuracy



Period

measurement

(ms)



1

0.6000 to 1.9999

0.6000 to 1.9990

-

-

2

2.000 to 19.999

2.000 to 19.990

3.000 to 19.999

3.000 to 19.990

3

20.00 to 199.99

20.00 to 199.90

20.00 to 199.99

20.00 to 199.90

4

200.0 to 1999.9

-

200.0 to 3999.9

200.0 to 399.0

Count

measurement

(count)

1

0 to 999999 (input conditions up to rotational speed measurement upper limit)











Mode



Range



Contactless measurement

Contact measurement

AVG=ON

AVG=OFF

AVG=ON

AVG=OFF

Rotational

speed

measurement

(r/m)

1

30.00 to 199.99

-

15.00 to 199.99

-

2

200.0 to 1999.9

300.0 to 1999.0

200.0 to 1999.9

150.0 to 1999.0

3

2000 to 19999

2000 to 19990

2000 to 19999

2000 to 19999

4

20000 to 99990

20000 to 99990

-

-

Rotational

speed

measurement

(r/s

1

0.5000 to 1.9999

-

0.2500 to 1.9999

-

2

2.000 to 19.999

5.000 to 19.990

2.000 to 19.999

2.500 to 19.990

3

20.00 to 199.99

20.00 to 199.90

20.00 to 199.99

20.00 to 199.90

4

200.0 to 1600.0

200.0 to 1600.0

200.0 to 333.0

200.0 to 333.0



Speed

Measurement

Range

AVG ON

AVG OFF

m/min





1

1.500 to 19.999

-

2

20.00 to 199.99

15.00 to 199.90

3

200.0 to 1999.9

200.0 to 1999.0

m/s





1

0.0250 to 1.9999

0.2500 to 1999.0

2

2.000 to 19.999

2.000 to 19.990

3

20.00 to 33.30

20.00 to 33.30
