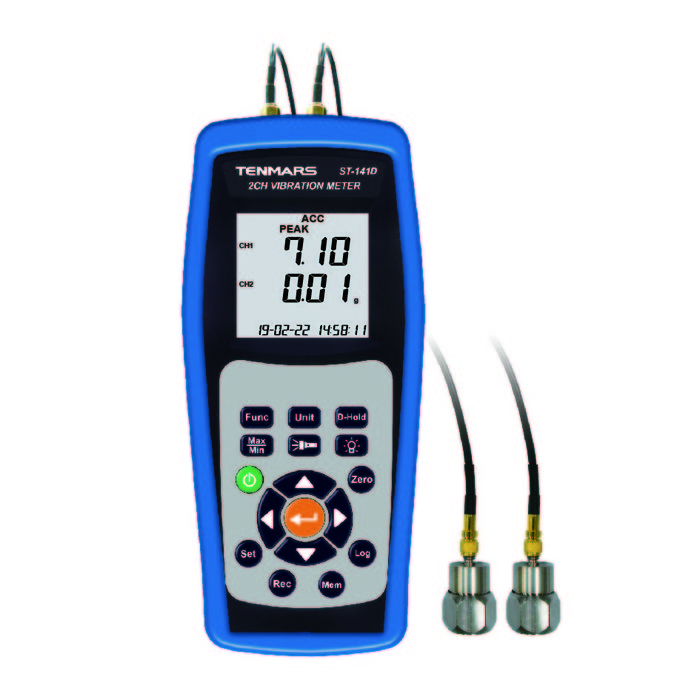

ST-141/ST-141D 5KHz Viabration Meter

Product Price $ 200
count:

ST-141/ST-141D Viabration Meter NEW-Require

ST-141/ST-141D Viabration Meter NEW

ST-141/ST-141D Viabration Meter

ST-141    Viabration Meter

ST-141D Viabration Meter (datalogger)

Features

  • Wide frequency range of 10Hz to 5KHz
  • Acceleration, velocity and displacement measurement
  • Meets ISO2954 sensor for accurate measurement
  • Vibration sensor with magnetic adapter on1.2M (47.2) cable
  • Frequency Lo range :10Hz~1KHz meets ISO 2954 measurement, Hi range : 10Hz~5KHz
  • Record /Recall MIN (ST-141),MAX readings
  • Data logger with 9999 records capacity (ST-141D)
  • USB interface (ST-141D)
  • Offset adjustment used for zero function
  • Auto power off with disable function
  • Resolution:0.1m/s²,0.01g,1ft/s²,0.1mm/s,0.01cm/s,0.01inch/s,0.001mm, 0.001inch


ST-141 / ST-141D

Measurement

frequency

range

Acceleration

10Hz~1KHz (Lo); 10Hz~5KHz (Hi)

Velocity

10Hz~1KHz

Displacement

10Hz~1KHz

Measurement

range

Acceleration

0.5~199.9m/s² , 0.05~20.39g, 2~656ft/s

Velocity

0.5~199.9mm/s , 0.05~19.99cm/s, 0.02~7.87inch/s

Displacement

0.005~1.999mm 0.002~0.078inch

Function

Acceleration/ Velocity

RMS, Peak, Max Hold, Hold

Displacement

Peak-Peak, Max Hold, Hold

Accuracy

± (5% reading+5 digits), ref 79.4/158Hz, 23°C,<80%RH

Dimension

240x100x45

Power supply

1.5V AAx6

AC adapter

AC 100~240V to DC8~12V /0.5A
