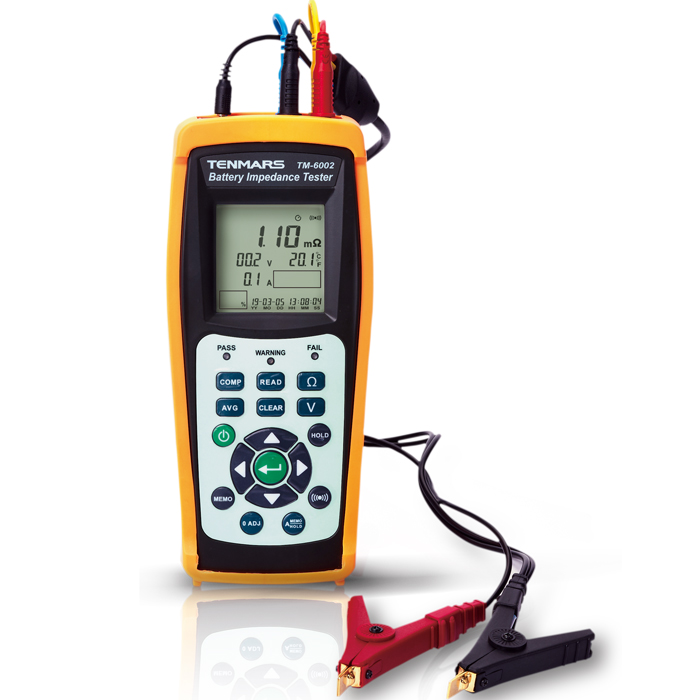

TM-6002 Battery Impedance Tester

TM-6002 Battery Impedance Tester

TM-6002 is an ideal tester for automotive, UPS maintenance and telecommunication applications.

-Quick response time.

-Simultaneously display the results of battery Impedance,voltage measurements.

-Built-in comparator function to rate the conditions as pass,warning or fail.

Specification

  • Battery capacity : 0 to 500A / h.
  • Resistance range : 40mΩ~40Ω. (Measuring Frequency : 1KHz ±30Hz)
  • Voltage range : 4.000V / 40.00V
  • Manual Data memory : 999 data sets.
  • USB interface datalogger with 9999 records capacity.
  • Comparator : Voltage , Impedance.
  • Max. voltage measurement : 40VDC (battery checker).
  • Comparator: 0~99 records (high / low). For battery internal impedance, voltage.
  • Support the comparator function to rate the conditions as PASS, WARNING or FAIL.
  • USB interface datalogger with 9999 records capacity.
  • Power supply : 1.5V alkaline battery x 6 pcs.



Impedance measurement

Measuring frequency:1KHz ±30Hz



Resistance

Range

40mΩ

400mΩ

40Ω

Resolution

10µΩ

100µΩ

1mΩ

10mΩ

Current

100mA

15mA

1.5mA

150µA

Accuracy

± (0.8% reading+10dgt)



Voltage

Range

4.000V

40.00V

Resolution

1mV

10mV

Accuracy

± (0.1% reading+6dgt)



Temperature

Range

-20°C~60°C (-4°F~140°F)

Resolution

0.1°C / 0.1°F

Accuracy

± 1°C ± 1.8°F
