YF-150

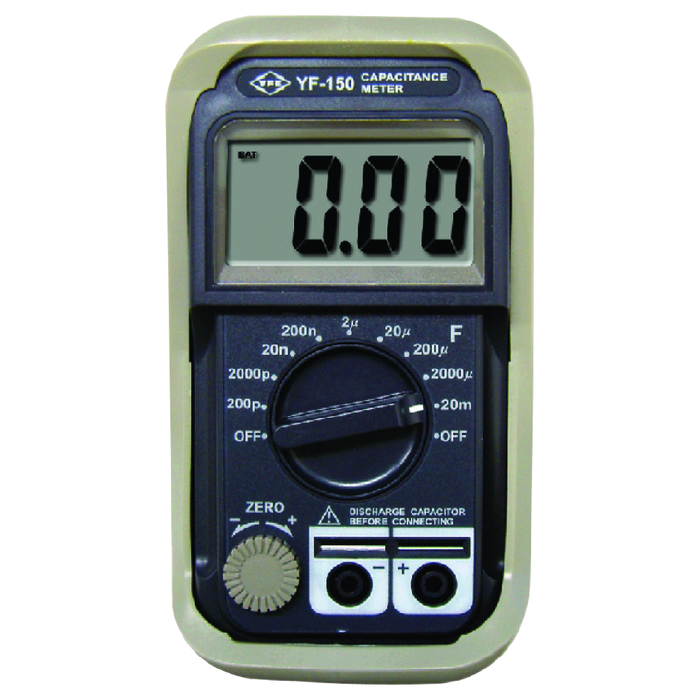

YF-150  Capacitance Tester





Application

9 test ranges ,200pF~20mF






Features

  • LCD : 3½ digits LCD a maximum reading of 1999.
  • Overload indication:LCD display "1" in the left highest position.
  • Zero adjustment , ±20pF approx.
  • Display rate : 0.5second ,approx.
  • Operating Temperature & Humidity :
  • 0℃~40℃ below 80%RH.
  • Storage temperature & Humidity :
  • -10℃~ 60℃ below 7% RH.



Specifications

  • Dimension: 4143mm(L)x74mm(W)x39mm(H).
  • Weight:about 267g. (Including battery)
Rang
Resolution
Accuracy
Max imum display
test frequency
Overload peotection
200pF
0.1pF
±(0.5%+1+0.5pF)
199.9pF
819.2Hz
0.1A/250V fuse
2000pF
1pF
±(0.5%+3)
1999pF
20nF
10pF
19.99pF
200nF
100pF
199.9nF
2μF
1nF
1.999μF
20μF
10nF
19.99μF
81.92Hz
200μF
100nF
199.9μF
8.912Hz
2000μF
1μF
±(1%+1)
1999μF
200mF
10μF
±(2%+1)
19.99mF
 ※pF=10-12F, nF=10-9 F. uF=10-6F, mF=10-3F,
 ※Test Voltage < 3.2V
