TM-188B

Product Price $ 300
count:

TM-188B NEW-Require

TM-188B NEW

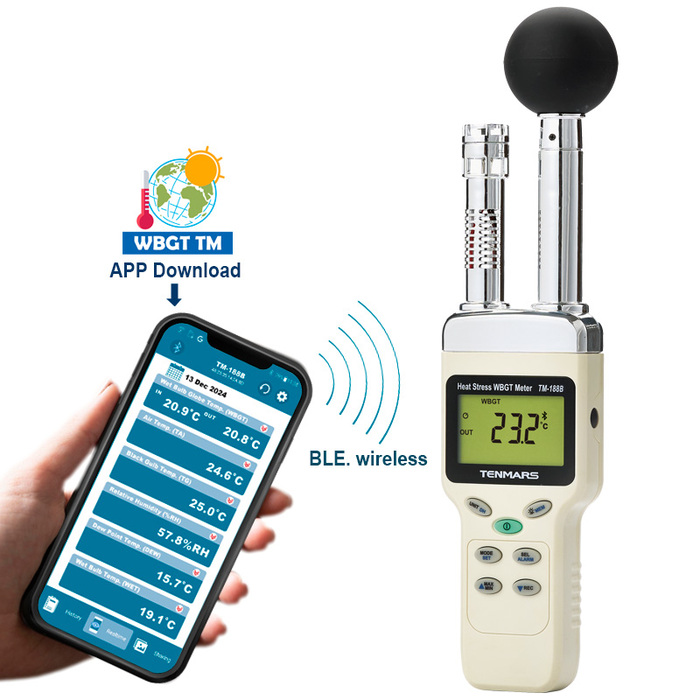

TM-188B HEAT STRESS WBGT METER


  • Quick-response capacitance sensor.
  • Accurate measurement for wet bulb globe
  • BLE. wireless transmission


Application

Featuring automatic data recording and BLE. wireless transmission, it can monitor and transmit data in real time to smartphones or tablets via a dedicated app, for in-depth analysis and advanced applications. It is ideal for environments where real-time monitoring is essential, such as sports training facilities, outdoor event venues, and high-temperature workplaces. The system supports faster, more convenient heat hazard monitoring and provides early warning capabilities.

In order to measure the WBGT index, you should refer to the following regulations:
  • ISO7243 : Hot environments. Estimation of the heat stress on working man.
  • ISO7726 : Ergonomics of the thermal environment-instruments for measuring physical quantities.
BLE.Connection & App Function Tutorial
Please search for “WBGT TM  ” in the App Store (iOS) or Google Play Store (Android) to download and install the application.
Android iOS
(iOS supports version 14.0 and above, Android supports version 8.0 and above)


Features

  • High-sensitivity, fast-response capacitive humidity sensor
  • Wet bulb globe temperature (WBGT), Black globe temperature (TG), Air temperature (TA), Relative Humidity (%RH), Dew point temperature (DEW), Wet bulb temperature (WET).
  • Max/Min/Ave readings and Data Hold function(HOLD)
  • Low battery indicator
  • LCD digital display with LED backlight
  • Manual data recording (up to 50 entries) and reading
  • Selectable temperature units: °C or °F
  • 50 mm diameter black globe made of brass
  • WBGT alarm setting
  • Alarm buzzer on/off
  • Auto power-off function and option to disable auto power-off
  • BLE. connection for real-time heat environment monitoring
  • USB interface for computer connection
  • Data memory capacity up to 12,000 entries
  • Sampling interval: maximum 24 hours, minimum 1 second



Specifications

  • Dimensions:243x70x50mm(length x width x height).
  • Weight: Approximately 220 grams.
Electrical Specifications (23°C±5°C)
Wet bulb globe temperature (WBGT)
Unit
Range
Resolution
Accuracy
@15~40°C
indoor&Outdoor
without sunlight
°C
0~59.0
0.1
±1.0
°F
32.0~138.0
0.1
±1.8
Outdoor With sunlight
°C
0~56.0
0.1
±1.5
°F
32.0~132.0
0.1
±2.7
※indoor & outdoor without sunlight:WBGT= (0.7×WET)+(0.3×TG)
Outdoor with sunlight:WBGT=(0.7×WET)+(0.2×TG)+(0.1×TA)

Air temperature (TA)
Unit
Range
Resolution
Accuracy
@15~40°C
°C
10.0~60.0
0.1
±0.8
°F
50.0~140.0
0.1
±1.5

Black globe temperature (TG)
Unit
Range
Resolution
Accuracy
@15~40°C
°C
20~80.0
0.1
±0.6
°F
68.0~176.0
0.1
±1.1

Relative Humidity (%RH)
 Measurement Range
 1%~99%
 Accuracy
 ±3.0%RH(20~80%)at 25°C
 ±5.0%RH(<20%,>80%) at 25°C
 Resolution
 0.1%

Dew point temperature (DEW)
Unit
Range
Resolution
°C
-35.3~48.9
0.1
°F
-31.5~120.1
0.1
The value is calculated from the RH and Air temperature.

Wet bulb temperature (WET)
Unit
Range
Resolution
°C
-21.6~50.0
0.1
°F
-6.9~122.0
0.1
The value is calculated from the RH and air temperature.





Accessories

  • User’s Manual
  • 006P 9V battery
  • Carrying
  • USB cable
  • AC100~240V DC9V/0.5A(9mm)



Download

File name
Version
Format
Download
Installation Guide
HB2TM188D030
PDF
Dowload
Software
KB1TM188D005
rar
Dowload
Software User Manual
HB2TM188D020
PDF
Dowload
User’s Manual
HB2TM1880003
PDF
Dowload
